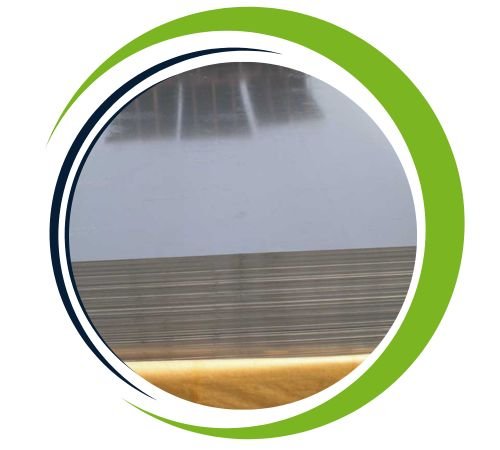

Victor Sheets and Plates, a well-respected manufacturer and supplier located in Abuja, Nigeria, is known for providing top-notch Monel 400 Sheets and Plates. These products are celebrated for their remarkable corrosion resistance, strength, and durability. Monel 400 is a nickel-copper alloy, consisting of about 67% nickel and 30% copper, and it performs exceptionally well in marine, chemical, and acidic environments, particularly against hydrofluoric acid and seawater corrosion. The sheets and plates are crafted with outstanding dimensional accuracy and surface quality, meeting ASTM, ASME, and international quality standards. Victor Sheets and Plates guarantees that their Monel 400 products deliver dependable service for industrial, marine, and chemical processing applications.
Monel 400 Sheets and Plates are made up of nickel (63–70%) and copper (28–34%), along with small amounts of iron, manganese, silicon, and sulfur. They boast a tensile strength ranging from 480 to 620 MPa and a yield strength of about 170 MPa, along with excellent elongation and toughness, even in freezing temperatures. This alloy offers impressive resistance to seawater, acids, and alkalis, while also providing good thermal and electrical conductivity. Its mechanical stability and corrosion resistance make Monel 400 perfect for demanding industrial and marine environments where longevity and reliability are crucial.
Specifications :ASTM B127 / ASME SB127, AMS 4544
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 4000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Finish : Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Form : Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange)
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Monel 400 Sheets and Plates offer several key advantages including exceptional corrosion resistance, particularly in seawater, acids, and alkaline environments. They exhibit excellent strength and durability at both high and low temperatures, making them ideal for demanding industrial applications. With good weldability, formability and resistance to stress corrosion cracking. Monel 400 is versatile for various industries, including marine, chemical, and aerospace. Its resistance to oxidation and wear ensures long-term performance, reducing maintenance and replacement costs. Overall Monel 400 provides reliability, longevity, and high performance in harsh environments.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Monel 400 Sheets and Plates are widely used across various industries, including marine engineering, chemical processing, oil refining, and power generation. You’ll find them in applications like heat exchangers, pressure vessels, pumps, valves, piping systems, and condenser tubes that come into contact with seawater and acidic substances. They’re also essential in offshore structures, fuel tanks, and hydrofluoric acid plants, thanks to their exceptional resistance to corrosion. In the aerospace and defense fields, Monel 400 is relied upon for components that need to be strong, tough, and resistant to oxidation. Its versatility and durability truly make it the go-to choice for critical applications in harsh, corrosive, and high-stress environments.
