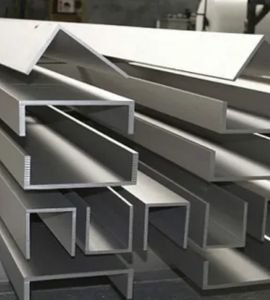

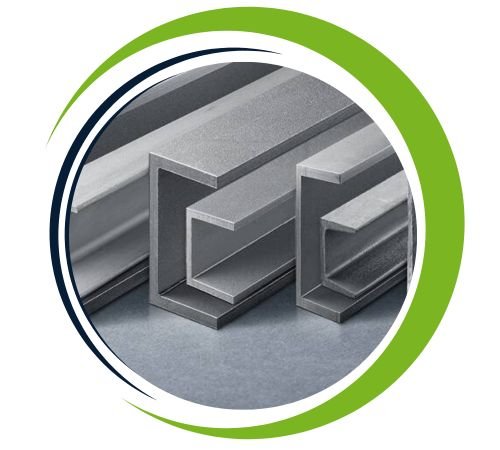

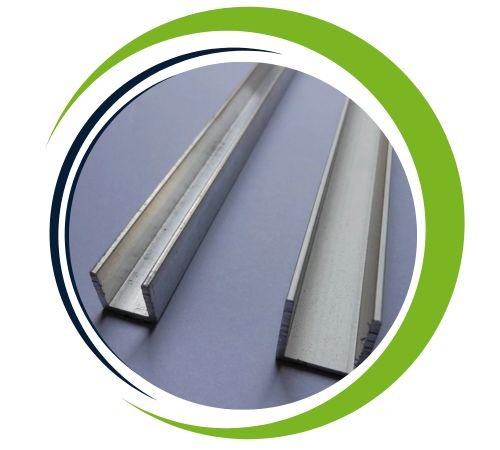

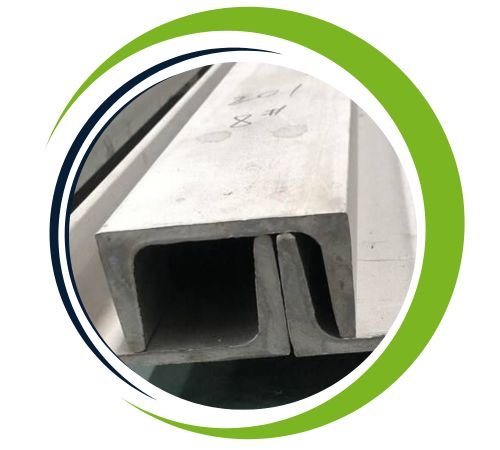

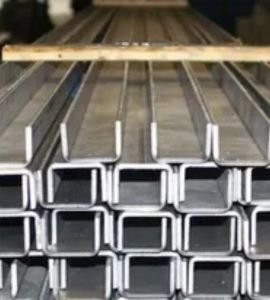

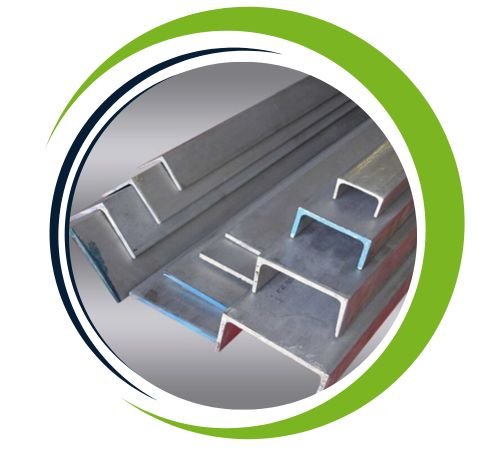

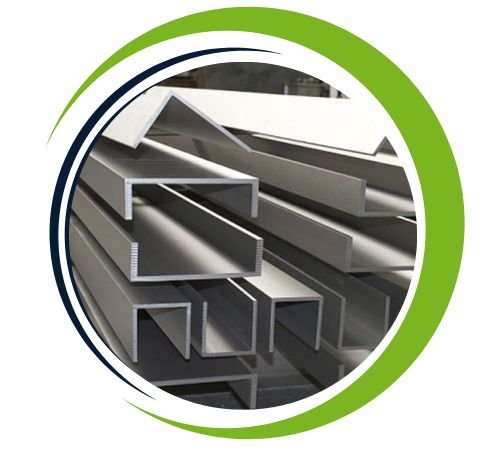

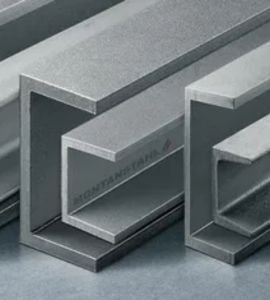

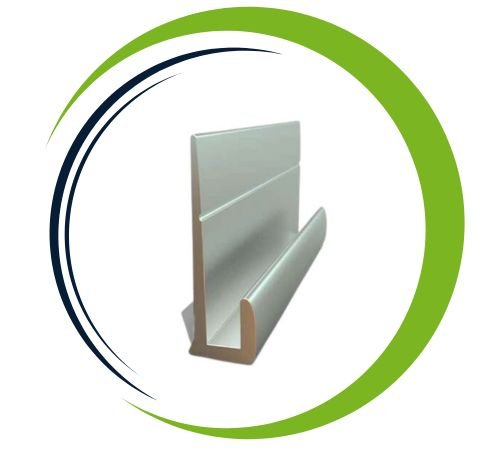

Victor Sheets and Plates, a renowned manufacturer and supplier in Abuja, Nigeria, offers Stainless Steel 316Ti Channels—a titanium-stabilized version of 316 stainless steel, engineered for exceptional performance in corrosive and high-temperature environments. This alloy combines the superior corrosion resistance of molybdenum-bearing stainless steels with enhanced stability during welding and thermal exposure. SS 316Ti Channels are designed to maintain mechanical integrity and resistance to intergranular corrosion even under continuous heat. Victor’s SS 316Ti Channels deliver strength, durability, and metallurgical precision—making them indispensable in marine, chemical, and industrial structural applications demanding long-term reliability.
Stainless Steel 316Ti contains 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a controlled titanium addition for stabilization. This formulation prevents carbide precipitation during welding and heat exposure, maintaining excellent corrosion resistance and mechanical stability. The alloy exhibits high tensile and yield strength, superior oxidation resistance up to 870°C, and excellent creep properties. SS 316Ti Channels offer remarkable toughness, formability, and weldability, even in harsh, chloride-rich environments. The titanium stabilization ensures long-term durability, making these channels ideal for structural and high-temperature industrial applications.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| ELEMENT | 316 | 316L | 316TI |
|---|---|---|---|
| NI | 11.0 – 14.0 | 10.0 – 14.0 | 10.0 – 14.0 |
| C | 0.08 max | 0.035 max | 0.08 max |
| MN | 2.0 max | 2.0 max | 2.0 max |
| P | 0.045 max | 0.045 max | 0.045 max |
| S | 0.30 max | 0.30 max | 0.30 max |
| SI | 1.0 max | 1.0 max | 0.75 max |
| CR | 16.0 – 18.0 | 16.0 – 18.0 | 16.0 – 18.0 |
| MO | 2.0 – 3.0 | 2.0 – 3.0 | 2.0 – 3.0 |
| TI | 5x(C+N) – 0.70 | ||
| N | 0.10 max |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 316Ti channels offer several key advantages, particularly in high-temperature and corrosive environments. The addition of titanium enhances the material’s resistance to carbide precipitation, improving its weldability and stability at elevated temperatures. With excellent resistance to oxidation, pitting, and stress corrosion, these channels are ideal for use in harsh industrial environments, including chemical processing, marine, and food industries. They provide exceptional strength and durability, even in aggressive conditions. Stainless Steel 316Ti channels are highly versatile, offering long-lasting, reliable performance with minimal maintenance, making them a cost-effective choice for demanding applications.
Yes, we offer custom sizes for Stainless Steel 316Ti Channel to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
Stainless Steel 316Ti Channels are extensively used in marine, petrochemical, and chemical processing industries where corrosion and heat resistance are critical. They are ideal for condensers, evaporators, heat exchangers, pressure vessels, and desalination plants. In construction and fabrication, they provide structural strength in environments exposed to moisture, salinity, and chemical vapors. These channels also perform reliably in thermal processing equipment and furnace components. Victor Sheets and Plates’ SS 316Ti Channels deliver unmatched endurance, dimensional stability, and corrosion resistance—engineered to perform flawlessly in the world’s most demanding industrial and marine conditions.
