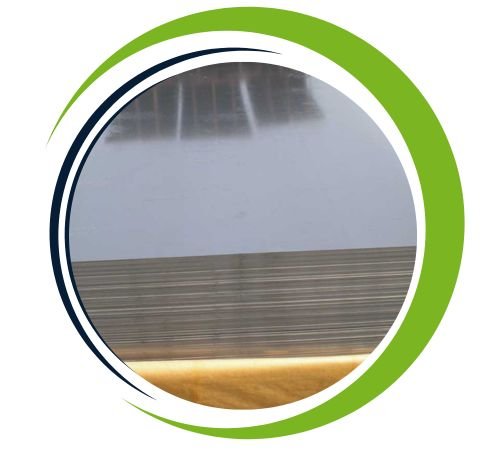

Titanium Grade 2 Sheets and Plates are among the most widely used titanium products due to their excellent balance of strength, corrosion resistance, and formability. Victor Sheets and Plates is a trusted manufacturer and supplier of Titanium Gr 2 Sheets & Plates in Abuja, Nigeria, delivering high-quality materials designed to perform reliably in challenging environments. These sheets and plates are lightweight yet strong, making them ideal for industries such as chemical processing, marine, aerospace, oil & gas, and power generation. We offer them in various thicknesses, sizes, and finishes to meet specific industrial requirements with precision and durability.
Titanium Grade 2 primarily contains Titanium (≥ 98%), along with small amounts of Iron, Carbon, Nitrogen, Oxygen, and Hydrogen. This grade features excellent corrosion resistance, particularly in oxidizing, chloride, and mildly reducing environments.
Mechanical Properties:
Tensile Strength: ~ 344 MPa
Yield Strength: ~ 275 MPa
Hardness: ~ 160 HB
Density: 4.5 g/cm³
Titanium Gr 2 offers good weldability, superior ductility, and moderate strength, making it suitable for forming and fabrication across multiple industries.
| Specifications | ASTM B265/ ASME SB265 |
|---|---|
| Size | 1000 x 2000 milimeter, 1220 x 2440 milimeter, 1500 x 3000 milimeter, 2000 x 2000 milimeter, 2000 x 4000 milimeter |
| Thickness | 0.1 to 12 milimeter |
| Form | Plates, Sheet, Slatting Coils, Coils, Foils, Plain Sheet, Shim Sheet, Strip, Rolls, Perforated Coils, Flats, Blank , Ring |
| Finish | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
|---|---|---|---|---|---|---|---|---|
| Ti Grade 2 Sheet & Plate | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Titanium Gr. 2 Sheet & Plate | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 | 3.7035 | R50400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 2 Sheets & Plates are widely used in heat exchangers, condensers, and process piping in chemical and petrochemical plants, due to their resistance to chloride corrosion. In the marine industry, they are used for boat components, seawater systems, and offshore equipment. The aerospace sector utilizes them for structural frames, engine components, and aircraft parts because of their high strength-to-weight ratio. They are also used in medical implants, power generation, desalination plants, refineries, and architectural cladding. Their durability, light weight, and corrosion resistance make them ideal for long-term and high-performance applications.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Titanium Grade 2 sheets and plates are widely used in industries requiring high corrosion resistance, strength, and lightweight materials. Common applications include chemical processing, aerospace, marine, and medical sectors. In chemical processing, they are used for equipment like heat exchangers and piping systems. In aerospace, titanium sheets and plates are used for aircraft components due to their high strength-to-weight ratio. Additionally, they are utilized for implants and prosthetics in medical applications due to their biocompatibility and resistance to bodily fluids. Their excellent weldability makes them versatile for various industrial applications.
