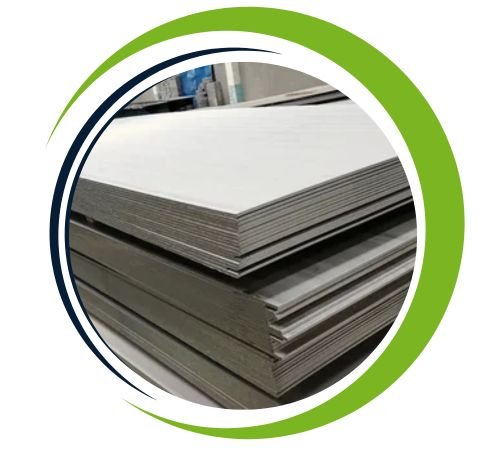

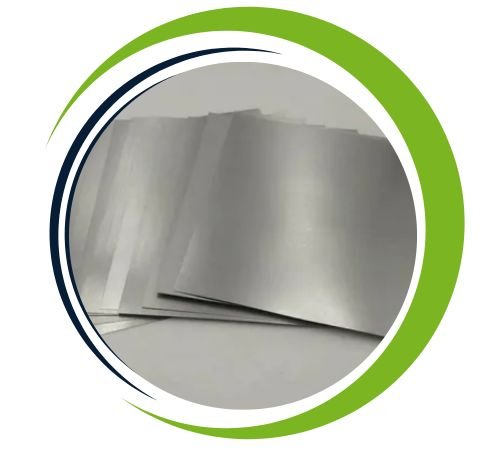

Victor Sheets and Plates, a reputable manufacturer and supplier located in Abuja, Nigeria, specializes in high-quality Nimonic 80A Sheets and Plates designed for outstanding performance in extreme temperatures and high-stress situations. Nimonic 80A is a nickel-chromium alloy enhanced with titanium, aluminum, and carbon, which gives it remarkable creep resistance, oxidation resistance, and tensile strength even at elevated temperatures. These sheets and plates are crafted to meet international standards like BS, ISO, and ASTM, making them perfect for turbine components, exhaust valves, and aerospace applications. At Victor Sheets and Plates, we ensure that every Nimonic 80A product meets the highest standards of quality, precision, and durability for even the most demanding industrial uses.
Nimonic 80A Sheets and Plates consist of Ni (70–80%), Cr (18–21%), Ti (1.8–2.7%), Al (1.0–1.8%), C (≤0.10%), along with trace amounts of Fe, Si, Cu, and Mn. They boast a tensile strength of up to 1,000 MPa and maintain excellent creep and fatigue resistance at temperatures reaching 815°C (1500°F). This alloy provides exceptional oxidation and corrosion resistance under high-stress conditions, along with impressive ductility and weldability. Its well-balanced mechanical and thermal properties make it an ideal choice for precision-engineered, heat-resistant structural components.
| Standards : | ASTM B637 / ASME SB637 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Shims Thickness : | Range from .01″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets and Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets and Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Plate, Sheet and Strip : | BS HR 203, DIN 17750, AECMA PrEN2293, AECMA PrEN2302, AECMA PrEN2411, ISO 6208 |
| Grade | Al | B | C | Cr | Co | Cu | Fe | Mn | Ni | P | Si | S |
| Nimonic 80A | 1 – 1.8 | 0.008 max | 0.1 max | 18 – 21 | 0.2 max | 0.2 max | 3 max | 1 max | Balance | 0.045 max | 1 max | 0.015 max |
| Grade | Condition | Ultimate Tensile Strength MPA | Yield Strength MPA | Elongation on 4D (min) | Hardness min |
| Nimonic 80A | Solution Annealed & Precipatation Treated (aged) | 994 | 616 | 20 | 300 HV |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Nimonic 80A sheets and plates offer several advantages, making them ideal for high-performance applications. They provide exceptional heat and oxidation resistance, maintaining strength at elevated temperatures up to 900°C. The alloy’s excellent creep and fatigue resistance ensure long-lasting performance in demanding environments. Nimonic 80A also exhibits superior corrosion resistance, especially in high-temperature and harsh conditions, making it suitable for aerospace, gas turbines, and industrial applications. Its high tensile and yield strength, along with good weldability, enhance its versatility and reliability in critical components subjected to extreme stress.
| WEIGHT PER NIMONIC SHEET : | ||||
| THICKNESS IN MM | SIZE IN MM | WEIGHT KG/M2 | ||
| 2000 X 1000 | 2500 X 1250 | 3000 X 1500 | ||
| 0.18 | 2.88 | – | – | 1.44 |
| 0.20 | 3.20 | – | – | 1.60 |
| 0.22 | 3.52 | – | – | 1.76 |
| 0.24 | 3.84 | – | – | 1.92 |
| 0.27 | 4.32 | – | – | 2.16 |
| 0.28 | 4.48 | – | – | 2.24 |
| 0.32 | 5.12 | – | – | 2.56 |
| 0.38 | 6.08 | – | – | 3.04 |
| 0.44 | 7.04 | 11.00 | – | 3.52 |
| 0.50 | 8.00 | 12.50 | – | 4.00 |
| 0.56 | 8.96 | 14.00 | – | 4.48 |
| 0.63 | 10.08 | 15.75 | – | 5.04 |
| 0.75 | 12.00 | 18.75 | – | 6.00 |
| 0.88 | 14.08 | 22.00 | – | 7.04 |
| 1.00 | 16.00 | 25.00 | 36.00 | 8.00 |
| .1.13 | 18.08 | 28.25 | 40.00 | 9.04 |
| 1.25 | 20.00 | 31.25 | 45.00 | 10.00 |
| 1.38 | 22.03 | 34.50 | 50.00 | 72.00 |
| 1.50 | 24.00 | 37.50 | 54.00 | 12.00 |
| 1.75 | 28.00 | 43.75 | 63.00 | 14.00 |
| 2.00 | 32.00 | 50.00 | 72.00 | 16.00 |
| 2.25 | 36.00 | 56.25 | 81.00 | 18.00 |
| 2.50 | 40.00 | 62.50 | 90.00 | 20.00 |
| 2.75 | 44.00 | 68.75 | 99.00 | 22.00 |
| 3.00 | 48.00 | 75.00 | 108.00 | 24.00 |
| 3.25 | 52.00 | 81.25 | 117.00 | 26.00 |
| 3.50 | 56.00 | 87.50 | 126.00 | 28.00 |
| 3.75 | 60.00 | 93.75 | 135.00 | 30.00 |
| 4.00 | 64.00 | 100.00 | 144.00 | 32.00 |
| 4.25 | 68.00 | 106.25 | 153.00 | 34.00 |
| 4.50 | 72.00 | 112.50 | 162.00 | 36.00 |
| 5.00 | 80.00 | 125.00 | 180.00 | 40.00 |
| 5.50 | 88.00 | 137.50 | 198.00 | 44.00 |
| 6.00 | 96.00 | 150.00 | 216.00 | 48.00 |
| 6.50 | 104.00 | 162.50 | 234.00 | 52.00 |
| 7.00 | 112.00 | 175.00 | 252.00 | 56.00 |
| 7.50 | 120.00 | 187.50 | 270.00 | 60.00 |
| 8.00 | 128.00 | 200.00 | 288.00 | 64.00 |
Yes, we offer custom sizes for Nimonic 80A Sheets and Plates to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Nimonic 80A Sheets and Plates are commonly found in gas turbine components, jet engines, exhaust systems, turbine blades, and combustion chambers, where they need to withstand high strength and temperature. They’re also used in automotive exhaust valves, heat exchangers, and power generation equipment. In industries like aerospace, marine, and petrochemical, Nimonic 80A is highly regarded for its ability to maintain stability and mechanical integrity even under intense thermal cycling. Its outstanding resistance to oxidation and creep makes it the go-to choice for high-performance engineering applications that demand reliability, a long service life, and the ability to handle extreme operating conditions.
