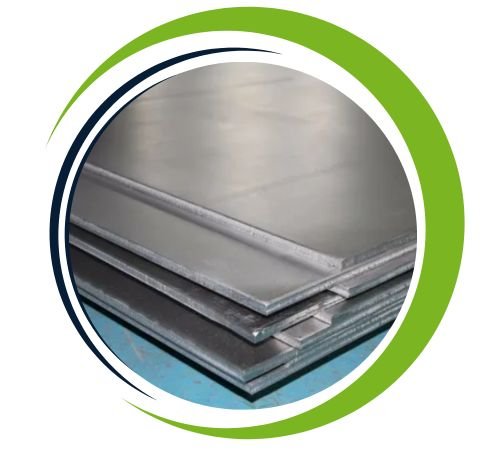

Victor Sheets and Plates, located in Abuja, Nigeria, is a trusted name in the manufacturing and supply of Niobium Sheets and Plates. Known for their exceptional purity and strength, our niobium products are crafted to perform in environments where precision and durability truly matter. Niobium stands out for its remarkable resistance to heat, corrosion, and chemicals, making it a favorite in high-tech and industrial applications. At Victor Sheets and Plates, we combine quality materials with expert craftsmanship to ensure every sheet and plate meets global standards and exceeds customer expectations for reliability and performance.
Our Niobium Sheets and Plates are made from high-purity niobium—typically 99.9% pure—with small additions of elements like tantalum and titanium for improved strength and flexibility. This gives the metal its excellent resistance to heat and corrosion, along with a very high melting point of about 2477°C. Niobium also offers great ductility, weldability, and stability under pressure, allowing it to perform flawlessly in extreme conditions. These mechanical properties make niobium both dependable and versatile for industries that require precision and long-lasting material performance.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |
| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |
| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Niobium sheets and plates offer several advantages, including exceptional corrosion resistance, especially in extreme environments such as high temperatures and acidic conditions. They have excellent weldability and formability, making them ideal for precision manufacturing. Niobium also boasts high strength-to-weight ratio, ensuring durability without adding excess weight. Its resistance to oxidation and ability to retain mechanical properties at elevated temperatures make it valuable for aerospace, electronics, and chemical industries. Additionally, niobium is non-toxic and biocompatible, making it suitable for medical implants and other specialized applications.
| Niobium and Niobium Alloys Sheet & Strip & Foil Dimension and Tolerance (mm) | ||||||
| Thickness | Thickness Tolerance | Width | Width Tolerance | Length | Length Tolerance | |
| Grade 1 | Grade 2 | |||||
| 0.025 – 0.1 | ± 0.005 | ± 0.008 | 50 – 150 | ± 2.0 | 100 – 20 000 | ± 2.0 |
| 0.1 – 0.2 | ± 0.015 | ± 0.02 | 50 – 240 | ± 2.0 | 100 – 20 000 | ± 2.0 |
| > 0.2 – 0.3 | ± 0.02 | ± 0.03 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.3 – 0.5 | ± 0.03 | ± 0.04 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.5 – 0.8 | ± 0.04 | ± 0.06 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 0.8 – 1.0 | ± 0.06 | ± 0.08 | 50 – 650 | ± 2.0 | 100 – 6 000 | ± 2.0 |
| > 1.0 – 1.5 | ± 0.08 | ± 0.12 | 50 – 650 | ± 3.0 | 100 – 6 000 | ± 4.0 |
| > 1.5 – 2.0 | ± 0.12 | ± 0.16 | 50 – 650 | ± 3.0 | 100 – 4 000 | ± 4.0 |
| > 2.0 – 3.0 | ± 0.16 | ± 0.18 | 50 – 650 | ± 5.0 | 100 – 4 000 | ± 5.0 |
| > 3.0 – 4.0 | ± 0.18 | ± 0.20 | 50 – 650 | ± 5.0 | 100 – 3000 | ± 5.0 |
| > 4.0 – 6.0 | ± 0.20 | ± 0.24 | 50 – 650 | ± 5.0 | 100 – 2000 | ± 5.0 |
| The tolerance can be adjusted based on customer’s request. | ||||||
Yes, we offer custom sizes for Niobium Sheets and Plates to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Niobium Sheets and Plates are used in some of the most advanced and demanding industries around the world. Their strength and resistance to extreme heat make them ideal for aerospace components, jet engines, and turbine parts. In the chemical and nuclear industries, they are valued for their corrosion resistance and stability under pressure. Niobium also plays a key role in medical devices, superconducting magnets, and electronic components. At Victor Sheets and Plates, we’re proud to supply niobium products that help power innovation, reliability, and safety across modern technology and engineering sectors.
