S500MC Sheet and Plates.

S500MC Sheet and Plates are high-strength, low-alloy steel materials designed for applications that demand excellent load-bearing performance and lightweight structural efficiency. This grade is commonly used in industries focused on strength-to-weight optimization, such as automotive manufacturing, transportation, construction equipment, and structural engineering. S500MC is produced using thermomechanical rolling, which enhances its mechanical strength and improves its formability. Because of this, the material can be shaped, bent, and fabricated into complex structures without losing stability. Its combination of durability, toughness, and weldability makes S500MC Sheet and Plates ideal for components that face heavy stress, dynamic loads, and continuous operational pressure.

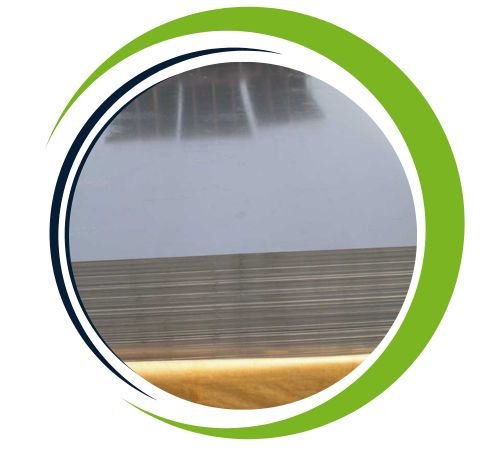

S500MC Cold Rolled Plates

S500MC Hot Rolled Plates

S500MC Shim Sheets

S500MC Steel Sheets Dealer in Lagos, S500MC Steel Plates Supplier in Lagos, S500MC Steel Sheets in Port Harcourt, S500MC Steel Plates Size Chart, S500MC Steel Sheet Price in Kano, S500MC Steel Plates Supplier in Nigeria, S500MC Steel Sheet Stockist in Ibadan, S500MC Steel Sheets and Plates Exporter in Nigeria, S500MC Steel Sheet Stockist in Abuja, S500MC Steel Plates Supplier in Ibadan

S500MC steel contains a balanced composition of carbon, manganese, phosphorus, sulfur, silicon, and micro-alloying elements such as niobium, vanadium, or titanium. These additions refine the grain structure and increase tensile strength while maintaining workable flexibility. The steel offers very high yield strength, making it suitable for weight-sensitive load-bearing applications. Despite its high strength, S500MC retains good formability and bendability when proper fabrication methods are followed. It also provides dependable weldability, allowing smooth integration into assemblies and frameworks. The alloy’s stability under stress and vibration makes it a reliable material for heavy-duty, high-performance industrial environments.

S500MC Sheet and Plates Specification

Item	High Tensile Steel Plate – EN 10149-2 / WNR. 1.0984
Standard	ASTM, ASME and API
Size	0.5 mm – 200 mm
Thickness range	2.4mm-16mm
Width range	900mm-1850mm
Length	2000mm to 12000mm
Process of Manufacturing	Hot-Rolled (HR)
Hardness	Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

S500MC Sheet and Plates Chemical Composition

Grade	C max	Si max	Mn max	P max	S max	AL max	Nb max	V max	Ti max
S500MC	0.12	0.50	1.7	0.025	0.015	0.015	0.09	0.2	0.15

S500MC Sheet and Plates Mechanical Properties

Grade	ReH-Minimun yield strength(Mpa)	Rm-Tensile strength(Mpa)	Nominal thickness(mm)	A-Minimum elongation Lo=5,65√So(%)	Nominal thickness(mm)	A-Minimum elongation Lo=Lo=80mm(%)
EN 10149-2 S500MC	500	550-700	From3	14	to3	12

S500MC Steel Sheets Price in Kano, S500MC Steel Hot Rolled Weight Chart, S500MC Steel Cold Rolled Supplier in Nigeria, Stockist of S500MC Steel Cold Rolled Sheets in Ibadan, S500MC Steel Perforated Sheet Supplier in Nigeria, S500MC Steel Perforated Plates Price List in Abuja, S500MC Steel Perforated Plates Supplier in Ibadan, S500MC Steel Chequered Plates Exporter in Lagos, S500MC Steel Polished Plates Exporter in Nigeria, S500MC Steel Perforated Plates Exporter in Port Harcourt, S500MC Steel Sheet and Plate in Kano

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest S500MC Sheet and Plates Manufacturer and Exporter in Abuja, Nigeria

Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

S500MC Steel Clad Sheets Distributor in Nigeria, S500MC Steel Perforated Plates Supplier in Abuja, S500MC Steel Perforated Sheet Weight Chart, S500MC Steel Plate Exporter in Ibadan, S500MC Steel Polished Sheets Manufacturer in Lagos, S500MC Steel Shim Sheet and Plate Price List in Nigeria, S500MC Steel Chequered Plates Sizes in mm, S500MC Steel Hot Rolled Plate Distributor in Port Harcourt, S500MC Steel Sheets and Plates Kano

S500MC Sheet and Plates are widely used in sectors where high strength and reduced structural weight are essential. In the automotive and transportation industry, they are used for chassis structures, axle components, trailer frames, and high-load brackets. In construction and heavy equipment manufacturing, these plates are used for crane booms, lifting arms, earth-moving machinery structures, and reinforced steel frameworks. The logistics and storage sector uses S500MC for shipping containers, loading platforms, and warehouse handling systems. Additionally, the material is suitable for manufacturing structural beams and support components in bridges and large industrial systems. Its strength, durability, and forming capability make S500MC a reliable choice for advanced engineering and fabrication.

Types of S500MC Sheet and Plates

S500MC Steel Plates Manufacturer in Lagos, S500MC Steel Plates & Sheets in Port Harcourt, S500MC Steel Mirror Finish Plates Supplier in Abuja, S500MC Steel Polished Plates Exporter in Ibadan, S500MC Steel Chequered Plates Price List in Nigeria, S500MC Steel Cold Rolled Plate Distributor in Port Harcourt, S500MC Steel Clad Plates and Sheets Supplier in Lagos, S500MC Steel Sheet and Plate Distributor in Nigeria, S500MC Steel Perforated Plate Sizes in mm

Are Custom Sizes Available for S500MC Sheet and Plates?

Yes, we offer custom sizes for S500MC Sheet and Plates to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

S500MC Sheet and Plates Weight

Theoretical Weight		Thickness(mm)	Theoretical Weight
Kg/m2	Kg/ft2	Thickness(mm)	Kg/ft2	Kg/m2
9.420	0.875	1.2	5.470	58.875
6.280	0.583	0.80	4.011	43.175
5.888	0.547	0.75	3.646	39.250
7.850	0.729	1.0	4.740	51.025
7.065	0.656	0.90	4.376	47.100
10.205	0.948	1.3	5.834	62.800
8.635	0.802	1.1	5.105	54.950
14.915	1.386	1.9	10.916	117.500
10990	1.021	1.4	6.928	74.575
13.345	1.240	1.7	8.751	94.200
17.270	1.604	2.2	12.398	133.450
11.775	1.094	1.5	7.293	78.500
19.625	1.823	2.5	13.856	149.150
12.560	1.167	1.6	8.387	90.275
14.130	1.313	1.8	10.210	100.900
31.400	2.917	4.0	16.044	172.700
15.700	1.459	2.0	11.669	125.600
23.550	2.188	3.0	14.586	157.000
18.055	1.677	2.3	13.127	141.300
27.475	2.553	3.5	15.315	164.850
35.325	3.282	4.5	18.232

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of S500MC Sheet and Plates

S500MC sheets and plates are widely used in industries requiring high-strength and durable materials. In the automotive sector, they are used for manufacturing chassis, structural reinforcements, and safety-critical components. These plates are essential in construction for creating load-bearing beams, columns, and framework for buildings and bridges. S500MC is also utilized in heavy machinery manufacturing, providing excellent performance under demanding conditions. Their superior weldability and formability make them ideal for applications in pressure vessels, transportation equipment, and structural parts that demand both strength and flexibility.
