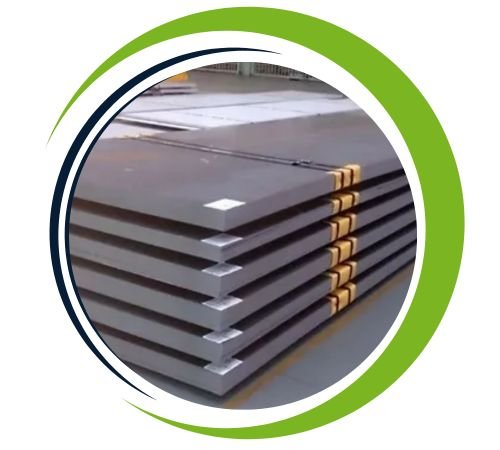

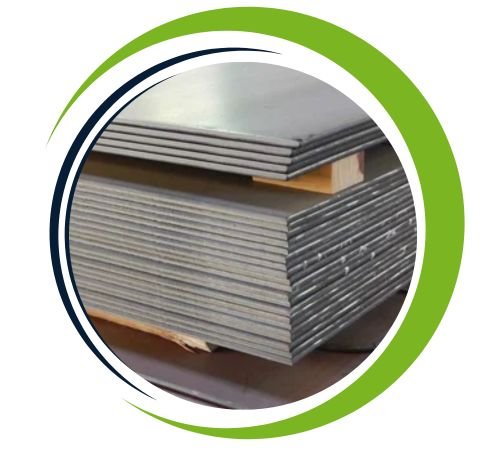

SA 515 Grade 60 sheets and plates are made from carbon steel with a composition of approximately 0.30% carbon, 0.60% manganese, 0.035% phosphorus, and 0.035% sulfur, with the balance being iron. The mechanical properties include a minimum tensile strength of 55-75 ksi (380-515 MPa) and a yield strength of 30 ksi (205 MPa). These materials exhibit excellent weldability and formability, making them suitable for high-temperature and pressure applications. They are widely used in boilers, pressure vessels, and heat exchangers, offering reliable performance and durability.
| Specifications | ASTM A515 Gr. 60 / ASME A515 Grade 60 | |
| Thickness |
| |
| Length | 3000 mm – 8000 mm | |
| Width | 1500-3500mm | |
| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Blank (Circle), Ring (Flange) | |
| Finish | Cold rolled sheet (CR), Hot rolled plate (HR) | |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Grade | C | Mn | P | S | Si |
|---|---|---|---|---|---|
| A515 Grade 60 | 0.24-0.31 | 0.98 max | 0.035 max | 0.035 max | 0.13-0.45 |
| Grade | Thickness | Yield | Tensile | Elongation |
|---|---|---|---|---|
| A515 Grade 60 | 50-200mm | MPa -220 min | MPa – 415-550 | 21-25% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA 515 Grade 60 Sheets and Plates are made from carbon-silicon steel, primarily consisting of carbon (0.24–0.31%), manganese (0.60–0.90%), phosphorus (≤0.035%), sulfur (≤0.035%), and silicon (0.13–0.45%). These plates are designed for high-temperature pressure vessel applications, providing outstanding strength and ductility. They boast a minimum tensile strength of 415–550 MPa, a yield strength of 260 MPa, and a minimum elongation of 21%. With excellent weldability, formability, and toughness, SA 515 Grade 60 Plates ensure reliable performance in high heat and pressure environments.
SA 515 Grade 60 sheets and plates offer several advantages, including excellent strength, durability, and resistance to high temperatures and pressure, making them ideal for use in boilers, pressure vessels, and heat exchangers. Their outstanding weldability and formability ensure easy fabrication and installation. These materials also provide good machinability and long-term performance, even in challenging environments. With their ability to withstand thermal stress and corrosion, SA 515 Grade 60 sheets and plates are a reliable choice for industries requiring safe and efficient operation in demanding conditions.
Yes, we offer custom sizes for ASTM SA 515 grade 60 Sheets and Plates to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
SA 515 Grade 60 Sheets and Plates are a go-to choice in industries that demand dependable performance in high-temperature and high-pressure environments. You’ll often find them in applications like boilers, pressure vessels, heat exchangers, and storage tanks, especially in refineries, petrochemical plants, and power generation facilities. Their remarkable ability to handle elevated temperatures makes them perfect for steam processing systems and industrial furnaces. Plus, these plates are also used in structural fabrication, chemical reactors, and the manufacturing of energy equipment. With their outstanding mechanical strength, thermal stability, and weldability, SA 515 Grade 60 Plates promise a long service life and ensure safety in critical engineering and industrial settings.
