SA 516 grade 65 Sheets and Plates

Victor Sheets and Plates is a well-respected manufacturer and supplier located in Abuja, Nigeria, specializing in top-notch SA 516 Grade 65 Sheets and Plates designed for pressure vessel and boiler applications. These plates are crafted in accordance with ASTM A516/A516M standards and are celebrated for their remarkable notch toughness, impressive strength, and excellent weldability. The SA 516 Grade 65 steel plates are particularly suited for moderate to lower temperature service conditions, making them perfect for boilers, heat exchangers, and pressure vessels. At Victor Sheets and Plates, precision engineering, thorough quality testing, and reliability are paramount, ensuring that their products meet global safety and durability standards.

SA516 Grade 65 Pressure Vessel Plates Nigeria, ASTM A516 Grade 65 Boiler Quality Plates United kingdom, SA516 Gr 65 BQ Plates Abuja, SA 516 Gr 65 Hot Rolled Boiler Steel Plates Lagos, ASTM A516 Gr 65 Plates Ibadan, SA516 Gr.65 Boiler Steel Plates Port Harcourt, A516 Grade 65 Boiler Plates Distributor Kano, ASME SA 516 Gr 65 Boiler & Pressure Vessel Stockist in Abuja, Nigeria.

ASME SA516 Gr 65 Carbon Steel Plate

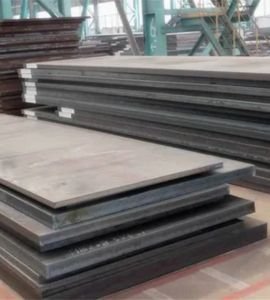

SA 516 Lower Temperature Carbon Steel Grade 65 Plates

A516 Grade 65 HR Boiler Plates

ASME SA516 Gr 65 Carbon Steel Plate Nigeria, SA 516 Lower Temperature Carbon Steel Grade 65 Plates Dealer United kingdom, A516 Grade 65 HR Boiler Plates Abuja, ASTM A516 Gr 65 Boiler Plates Exporter Lagos, SA 516 Gr 65 Carbon Steel Pressure Vessel Plates Ibadan, SA516 Grade 65 Pressure Vessel & Boiler Plates Supplier in Port Harcourt, SA285 Gr.A Boiler Steel Plates Kano.

SA 516 Grade 65 steel plates are composed of carbon (0.18–0.28%), manganese (0.85–1.20%), phosphorus (≤0.025%), sulfur (≤0.025%), and small amounts of silicon (0.13–0.45%). This grade boasts a minimum yield strength of 240 MPa and a tensile strength ranging from 450 to 585 MPa, providing excellent ductility and impact resistance. Its fine-grained structure enhances both weldability and toughness, even in low temperatures. These mechanical properties make SA 516 Gr 65 an ideal choice for fabricating high-pressure equipment that demands reliable performance under varying thermal and mechanical conditions.

SA 516 grade 65 Sheets and Plates Specification

Grade : ASME SA 516 GR.65 Boiler and Pressure Vessel Steel Plates
Width : 1250mm-3000mm
Thickness : 3 – 200 mm/ dimensions up to 4.000 mm
Length : 3000mm-11000mm.
Production : Hot-Rolled (HR)
Heat Treatment : Rolled/Normalised/N+T/QT

Chemical Composition Of SA 516 grade 65 Sheets and Plates

C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo	Nb	Ti	V
0.08/0.20	0.4	0.9/1.5	0.03	0.03	0.02	0.3	0.3	0.3	0.08	0.01	0.03	0.02

Mechanical Properties Of SA 516 grade 65 Sheets and Plates

Tensile strength (ksi)	Tensile strength (MPa)	Yield strength (ksi)	Yield strength (MPa)	Elongation in 200mm (min)(%)	Elongation in 50mm (min) (%)
65-85	450-585	35	240	19	23

SA516 Grade 65 Pressure Vessel Plates Nigeria, ASTM A516 Grade 65 Boiler Quality Plates United kingdom, SA516 Gr 65 BQ Plates Abuja, SA 516 Gr 65 Hot Rolled Boiler Steel Plates Lagos, ASTM A516 Gr 65 Plates Ibadan, SA516 Gr.65 Boiler Steel Plates Port Harcourt, A516 Grade 65 Boiler Plates Distributor Kano, ASME SA 516 Gr 65 Boiler & Pressure Vessel Stockist in Abuja, Nigeria.

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest SA 516 grade 65 Sheets and Plates Manufacturer and Exporter in Abuja, Nigeria

Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

ASME SA516 Gr 65 Carbon Steel Plate Nigeria, SA 516 Lower Temperature Carbon Steel Grade 65 Plates Dealer United kingdom, A516 Grade 65 HR Boiler Plates Abuja, ASTM A516 Gr 65 Boiler Plates Exporter Lagos, SA 516 Gr 65 Carbon Steel Pressure Vessel Plates Ibadan, SA516 Grade 65 Pressure Vessel & Boiler Plates Supplier in Port Harcourt, SA285 Gr.A Boiler Steel Plates Kano.

SA 516 Grade 65 sheets and plates offer several key advantages. They provide excellent weldability, making them ideal for fabricating pressure vessels, boilers, and heat exchangers. With high strength and superior toughness, they perform well under both high-pressure and high-temperature conditions. Their resistance to brittle fracture at low temperatures adds to their durability. The material’s outstanding formability and machinability make it easy to shape and cut for various industrial applications. Additionally, SA 516 Grade 65 is cost-effective while maintaining high-quality standards, ensuring reliability and longevity in demanding environments.

Types of SA 516 grade 65 Sheets and Plates

Are Custom Sizes Available for SA 516 grade 65 Sheets and Plates?

Yes, we offer custom sizes for SA 516 grade 65 Sheets and Plates to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of SA 516 grade 65 Sheets and Plates

SA 516 Grade 65 Sheets and Plates are commonly utilized in the construction of boilers, pressure vessels, heat exchangers, storage tanks, and industrial gas containers. These materials are particularly well-suited for industries like petrochemical, oil and gas, power generation, and chemical processing, where it’s crucial to withstand pressure and temperature changes. Known for their outstanding weldability and high toughness, these plates help maintain structural integrity over time. Their reliable performance in high-stress and high-temperature situations makes SA 516 Gr 65 a vital choice for creating safe, durable, and efficient pressure-handling equipment.
