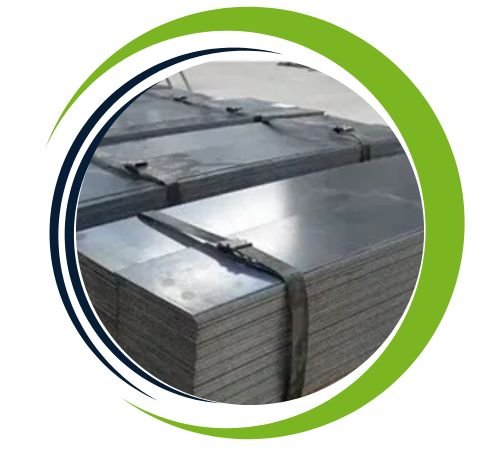

Victor Sheets and Plates, a reputable manufacturer and supplier located in Abuja, Nigeria, specializes in top-notch SA537 Class 2 Boiler Sheets and Plates, perfect for high-pressure and high-temperature applications. These plates are crafted from heat-treated carbon-manganese-silicon steel, renowned for their outstanding impact resistance, tensile strength, and weldability. Built to meet ASTM SA537 standards, they’re the go-to choice for pressure vessels, reactors, and boilers that operate in tough conditions. Victor Sheets and Plates guarantees that each plate adheres to rigorous international quality standards, making their SA537 Class 2 Boiler Plates the preferred option for industries such as oil refining, chemical processing, and power generation.
SA537 Class 2 steel is made up of carbon (maximum 0.24%), manganese (0.60–1.60%), silicon (0.15–0.50%), phosphorus (≤0.025%), and sulfur (≤0.025%). The plates undergo quenching and tempering, which results in remarkable strength and toughness. They boast a tensile strength ranging from 485 to 620 MPa, a yield strength of 345 MPa, and a minimum elongation of 20%. This grade is known for its excellent notch toughness, weldability, and resistance to brittle fracture, making it ideal for heavy-duty pressure equipment. The heat treatment process enhances mechanical performance, ensuring reliable results in both low- and high-temperature service conditions.
Grade : ASME SA 537 CL.2 Boiler and Pressure Vessel Steel Plates
Width : 1000mm-4500mm
Thickness : 5mm-150mm
Length : 3000mm-18000mm
Supply Condition : As Rolled, Normalized Rolling, Furnace Normalizing, Vacuum Degassing, Simulated Post-Weld Heat Treatment or as per customer requirement.
Impact tested : -52° C
Tempering : Notch toughness can be improved by quenched cooling from hot rolling or normalizing by the supplier. If such a faster cooling rate is agreed upon between purchaser and supplier then the steel is also to be tempered at 1200 F.
Applications : Used for Boilers and Pressure Vessels Application.
Process of Manufacturing : Hot-Rolled (HR)
| C | Mn | P | S | Si | Cr | Cu | Ni | Mo | |
| ≤ 40 mm | > 40 mm | ||||||||
| 0.24 max | 0.70/1.35 | 1.00/1.60 | 0.035 | 0.035 | 0.15/0.50 | 0.025 | 0.35 | 0.25 | 0.080 |
| Grade | Heat Treatment | Tensile (MPa) | Yield (MPa) | Elongation |
| SA537 Class 2 | Quenched and tempered | 550–690 | 415 | 22% |
| Steel Grade | JIS | Germany |
| ASTM/ASME | G3115 | DIN17155 |
| A537 / SA537 | SPV36 | 19Mn5 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
SA537 Class 2 boiler sheet and plate offer excellent strength and durability, making them ideal for pressure vessels and boiler applications. They are heat-treated to improve their hardness, ensuring resistance to high-pressure environments and elevated temperatures. The material demonstrates excellent weldability, enabling easy fabrication into complex shapes. Its resistance to corrosion and cracking under stress makes it suitable for harsh industrial environments. Additionally, SA537 Class 2 provides good toughness and impact resistance, ensuring long-term reliability in demanding applications such as power plants and chemical processing.
SA537 Class 2 Boiler Sheets and Plates are commonly found in high-pressure vessels, heat exchangers, steam boilers, and gas storage tanks, thanks to their remarkable mechanical strength and impact resistance. They’re perfect for oil and gas refineries, petrochemical plants, thermal power stations, and energy generation systems where it’s essential to handle high pressure and temperature. Plus, these plates are also used in industrial autoclaves, reactors, and pressure tanks. With their outstanding toughness and weldability, they’re a dependable choice for critical structural applications, ensuring long-lasting durability and safety in demanding environments that require top-notch performance under pressure and heat.
