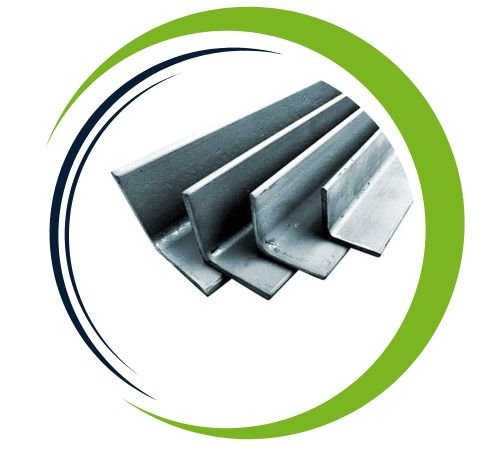

Victor Sheets and Plates, a premier manufacturer and supplier headquartered in Abuja, Nigeria, pioneers excellence in advanced alloy solutions with its superior Stainless Steel 17-7 PH Angles. Engineered through precision metallurgy, these precipitation-hardened angles deliver exceptional strength, resilience, and corrosion resistance. Built for applications where both mechanical endurance and dimensional stability are paramount, 17-7 PH Angles represent the perfect fusion of innovation and integrity. At Victor Sheets and Plates, each angle embodies unwavering performance, reliability, and craftsmanship—making them indispensable in industries where structural strength and lasting performance define success.
The Stainless Steel 17-7 PH Angle is a semi-austenitic precipitation-hardening alloy composed of 16–18% chromium, 6.5–7.75% nickel, and small additions of aluminum (0.75–1.5%) for enhanced hardenability. It achieves superior mechanical properties through controlled heat treatment, providing a tensile strength of up to 1310 MPa with excellent fatigue and creep resistance. The alloy exhibits remarkable corrosion resistance comparable to 304 stainless steel, while maintaining outstanding toughness and stability at elevated temperatures—ensuring long-term reliability under severe mechanical and environmental stress.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness: 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Ni | Al | Cr | P | Si | S | Fe | |
| 17-7 PH | min. | – | – | 6.50 | 0.75 | 16 | – | – | – | – |
| max. | 0.09 | 1.0 | 7.75 | 1.50 | 18 | 0.040 | 1.0 | 0.030 | Balance | |
| Properties | Metric | Imperial |
| Tensile strength | 1170 MPa | 170000 psi |
| Yield strength | 965 MPa | 140000 psi |
| Modulus of elasticity | 204 GPa | 29600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break | 6% | 6% |
| Hardness, Rockwell C | 38 | 38 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | BS | GOST | EN |
| SS 17-7 PH | 1.4568 | S17700 | SUS 631 | Z8CNA17.07 | 301S81 | – | X7CrNiAl 17 7 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 17-7 PH (Precipitation Hardened) Angle offers several advantages. Combine excellent strength, superior fatigue resistance and excellent processing power. The material offers excellent corrosion resistance, making it ideal for harsh environments. It is also resistant to high temperatures and can withstand high temperatures without losing its mechanical properties. Stainless steel 17-7 PH Angle is widely used in aerospace, automotive, and construction applications due to its ability to heat treat to varying hardness while maintaining high performance and reliability while also saving cost which is less expensive.
Victor’s Stainless Steel 17-7 PH Angles are tailored for high-performance environments that demand strength, precision, and resilience. They are extensively used in aerospace components, petrochemical plants, pressure vessels, and marine structures, where superior fatigue resistance and dimensional stability are essential. Their remarkable mechanical strength makes them ideal for springs, structural supports, fasteners, and high-load frameworks in both industrial and defense sectors. In environments where ordinary alloys falter under heat and pressure, Victor’s 17-7 PH Angles stand resolute—delivering unwavering performance, durability, and the engineering excellence that defines modern stainless steel innovation.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
Discover high-quality products tailored to meet your unique needs and preferences.
Get instant quotes that fit your budget perfectly.
