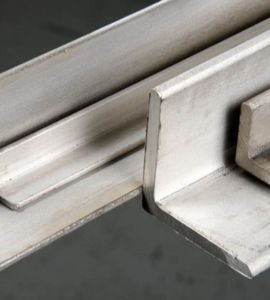

Victor Sheets and Plates, a leading manufacturer and supplier based in Abuja, Nigeria, specializes in high-quality Stainless Steel 202 Angles that are built to provide outstanding strength, durability, and resistance to corrosion. These angles are crafted from austenitic chromium–nickel–manganese stainless steel (Grade 202), which is recognized for its toughness and cost-effectiveness when compared to the 300 series grades. With cutting-edge production methods and rigorous quality control, Victor guarantees precision and reliability in every item they produce. Stainless Steel 202 Angles are perfect for structural, architectural, and industrial uses, ensuring a long service life and impressive mechanical strength, even in tough environments like marine, construction, and chemical processing sectors.
Stainless Steel 202 is made up of about 16–18% chromium, 4–6% nickel, 7.5–10% manganese, and a maximum of 0.15% carbon. This blend provides excellent resistance to corrosion and oxidation, along with good formability and high tensile strength (515–860 MPa). It has a yield strength of 275 MPa and an elongation of around 40%, making it suitable for both heavy-duty and decorative applications. While it may not be as corrosion-resistant as 304, SS 202 strikes a great balance of strength, workability, and toughness, making it ideal for general industrial and structural purposes.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 202 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade 202 | C | Mn | Si | P | S | Cr | Ni | N |
| max. | 0.15 | 7.50-10 | 1 | 0.060 | 0.030 | 17- 19 | 4-6 | 0.25 |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min |
| 202 | 515 | 275 | 40 |
| STANDARD | UNS | WERKSTOFF NR. |
| SS 202 | S20200 | 1.4373 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 202 angle offers many advantages, including excellent corrosion resistance, making it ideal for use in wet and chemical environments It has excellent strength and durability, and ensures performance reliability in construction applications. This alloy is cost-effective compared to higher grades like 304, while still providing high resistance to oxidation and turbidity. Stainless Steel 202 is highly versatile, easy to manufacture and maintain, and provides aesthetic appeal. It is commonly used in the construction, design and construction industry, providing a balance of energy and cost.
| Sizes (all Dimensions in milimeter) | Approx Weight SS Angle Bar (kilogram/meter) | SS 202 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight SS 202 Angle Bar (kilogram/meter) |
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
Stainless Steel 202 Angles are a popular choice in various sectors like construction, infrastructure, transport, and fabrication, thanks to their impressive mechanical strength and resistance to corrosion. They’re perfect for creating frames, supports, brackets, beams, and reinforcements in buildings, bridges, and machinery. You’ll also find them commonly used in railway coaches, conveyors, and architectural frameworks, as well as in chemical processing and marine applications where moderate corrosion resistance is essential. With their blend of affordability, durability, and visual appeal, SS 202 Angles are a versatile option for industrial structures, furniture, and equipment fabrication, meeting the demands for both performance and cost-effectiveness.
