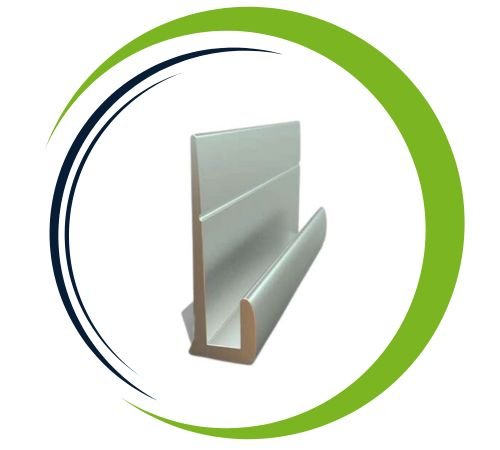

Victor Sheets and Plates, located in Abuja, Nigeria, stands out as a leading manufacturer and supplier of Stainless Steel 309H Channels, celebrated for their exceptional quality, precision, and durability. The company focuses on crafting stainless steel structural components that adhere to international performance and reliability standards. Stainless Steel 309H, a high-carbon austenitic grade, is specifically designed to excel in oxidation and heat resistance, even at high temperatures. Victor Sheets and Plates caters to various industries, including petrochemical, power generation, furnace construction, and thermal processing. Their 309H channels are engineered to deliver structural strength, corrosion resistance, and a long service life, even in challenging, high-temperature settings.
Stainless Steel 309H Channel is composed of iron, chromium (22-24%), nickel (12-15%), and small amounts of manganese, silicon, and carbon. The high carbon content (up to 0.20%) enhances its high-temperature strength and oxidation resistance, making it suitable for extreme environments. This alloy offers excellent resistance to scaling and oxidation in temperatures up to 1,000°C (1,832°F). Stainless Steel 309H has a tensile strength of approximately 515-720 MPa and a yield strength of 205 MPa. It also provides good weldability and formability, ensuring reliable performance in high-stress applications.
| Standard | ASTM A276, ASTM A479 / ASME SA276, ASME SA479 |
| Condition | HRAP |
| Size Range | Base: 80 to 150 mm Side: 40 to 75 mm |
| Thickness | 5 to 6 mm (depending on size) |
| Grades | 304, 316 |
| Processing | Bar cutting |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 – 18.00 | 16.00 – 18.00 | 10.00 – 14.00 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 309H is an austenitic alloy that contains around 22–24% chromium, 12–15% nickel, and 0.04–0.10% carbon. The increased carbon content boosts creep strength and high-temperature performance. It boasts a minimum tensile strength of 515 MPa, a yield strength of 205 MPa, and an elongation of at least 40%. 309H showcases remarkable oxidation resistance up to 1000°C, along with good toughness and thermal stability. This alloy is resistant to carburization, sulfidation, and scaling, making it perfect for extended exposure to high temperatures and oxidizing environments.
Stainless Steel 309H Channel offers numerous advantages, including superior resistance to oxidation and scaling at high temperatures, making it ideal for extreme thermal environments. Its high carbon content enhances strength, ensuring durability in applications requiring heat resistance up to 1,000°C (1,832°F). The alloy is highly resistant to corrosion, particularly in high-temperature, acidic, and oxidizing conditions. Additionally, Stainless Steel 309H provides excellent weldability and formability, making it easy to fabricate. Its robust mechanical properties and heat resistance make it a preferred choice for industries like aerospace, chemical processing, and power generation.
Yes, we offer custom sizes for Stainless Steel 309H Channel to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | – | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| Description | Process | G kg/m | h mm | b mm | tw mm | tf mm | r1 mm | r2 mm |
|---|---|---|---|---|---|---|---|---|
| C 50X25X5X6 | Hot Rolled | 3.95 | 50 | 25 | 5 | 6 | 6 | 3 |
| C 75X40X5X7 | Hot Rolled/Laser | 6.95 | 75 | 40 | 5 | 7 | 8 | 4 |
| C 100X50X5X7.5 | Hot Rolled/Laser | 9.37 | 100 | 50 | 5 | 7.5 | 8 | 4 |
| C 125X65X6X8 | Hot Rolled/Laser | 13.4 | 125 | 65 | 6 | 8 | 8 | 4 |
| C 150X75X6.5X10 | Hot Rolled/Laser | 18.62 | 150 | 75 | 6.5 | 10 | 10 | 5 |
| C 150X75X9X12.5 | Hot Rolled/Laser | 24.01 | 150 | 75 | 9 | 12.5 | 5 | 1 |
| C 180X75X7X10.5 | Hot Rolled/Laser | 21.52 | 180 | 75 | 7 | 10 | 2 | 1 |
| C 200X80X7.5X11 | Hot Rolled/Laser | 24.77 | 200 | 80 | 7.5 | 11 | 2 | 1 |
| C 200X90X8X13.5 | Hot Rolled/Laser | 30.53 | 200 | 90 | 8 | 13.5 | 2 | 1 |
| C 230X80X8X12 | Hot Rolled/Laser | 28.56 | 230 | 80 | 8 | 12 | 2 | 1 |
| C 250X90X9X13 | Hot Rolled/Laser | 34.86 | 250 | 90 | 9 | 13 | 2 | 1 |
| C 250X90X11X14.5 | Hot Rolled/Laser | 40.34 | 250 | 90 | 11 | 14.5 | 2 | 1 |
| C 300X90X9X12 | Hot Rolled/Laser | 37.17 | 300 | 90 | 9 | 12 | 2 | 1 |
| C 300X90X10X15.5 | Hot Rolled/Laser | 43.85 | 300 | 90 | 10 | 15.5 | 2 | 1 |
| C 300X90X12X16 | Hot Rolled/Laser | 48.78 | 300 | 90 | 12 | 16 | 2 | 1 |
| C 380X100X10.5X16 | Hot Rolled/Laser | 54.85 | 380 | 100 | 10.5 | 16 | 2 | 1 |
| C 380X100X13X16.5 | Hot Rolled/Laser | 62.5 | 380 | 100 | 13 | 16.5 | 2 | 1 |
| C 380X100X13X20 | Hot Rolled/Laser | 67.37 | 380 | 100 | 13 | 20 | 2 | 1 |
Stainless Steel 309H Channels are commonly found in various applications like furnace components, heat treatment baskets, boiler baffles, refinery equipment, and thermal processing systems that demand high-temperature strength and resistance to oxidation. You’ll also see them in power plants, petrochemical industries, and as kiln supports, providing structural reinforcement in extreme conditions. Thanks to their durability and ability to withstand thermal fatigue, 309H channels are perfect for building frames, supports, and enclosures in high-heat settings. Their unique blend of strength, heat resistance, and corrosion resistance guarantees reliable performance, even in situations that involve frequent heating and cooling cycles.
