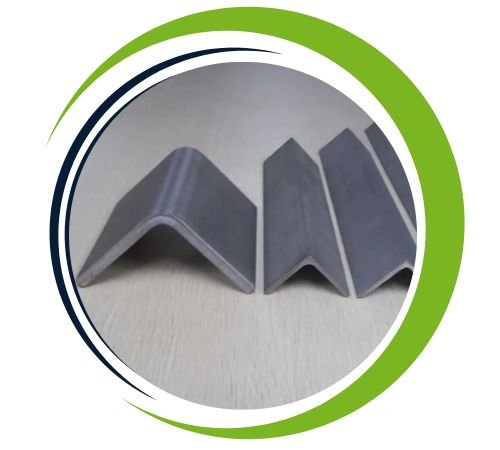

Victor Sheets and Plates, a renowned manufacturer and supplier based in Abuja, Nigeria, epitomizes engineering brilliance with its premium Stainless Steel 310H Angles. Crafted for resilience under the most demanding thermal and corrosive conditions, these angles are a testament to Victor’s dedication to metallurgical perfection. The 310H grade, with its enhanced carbon content, offers extraordinary strength and stability at elevated temperatures, ensuring long-term structural integrity. Every 310H Angle from Victor Sheets and Plates reflects precision, endurance, and uncompromising quality—ideal for industries where heat, oxidation, and mechanical stress converge to test the limits of performance.
The Stainless Steel 310H Angle is a high-carbon variant of the 310 series, comprising 24–26% chromium and 19–22% nickel, offering superior resistance to oxidation and scaling up to 1100°C. The elevated carbon enhances creep strength and mechanical toughness at high temperatures. With a tensile strength of approximately 515 MPa, excellent ductility, and robust structural integrity, 310H maintains its form under thermal cycling. Its resistance to sulfidation, carburization, and corrosion makes it an ideal alloy for heavy-duty, heat-intensive industrial applications requiring longevity and unwavering strength.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 310H Angle | : | 5mm to 9mm |
| SS 310H Channel | : | 40mm*20mm~300mm*300mm |
| SS 310H Beam | : | 3″ thru 12.31″ |
| SS 310H Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 310H | 0.04 – 0.10 | 2 max | 1.0 max | 0.045 max | 0.030 max | 24 – 26 | – | 19 – 21 | 53.885 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1402 °C (2555 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 310H | S31009 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 310H angle provides excellent resistance to high temperature oxidation and corrosion, making it ideal for use in furnaces, heat exchangers and exhaust systems Its high chromium and nickel content provides excellent strength and durability exist longer at higher temperatures. The alloy has excellent weldability and formability, making it suitable for structural applications. In addition, the stainless steel 310H surface retains its mechanical properties in areas of thermal cycling and chemical exposure These properties ensure durability and reliability in applications such as petrochemical, aerospace, and in power generation.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Victor’s Stainless Steel 310H Angles are purpose-built for high-temperature and high-pressure environments across a broad spectrum of industries. They are widely utilized in furnace structures, heat exchangers, boiler supports, petrochemical plants, and power generation systems, where oxidation resistance and mechanical strength are paramount. In refineries and thermal processing units, 310H Angles deliver exceptional durability under fluctuating thermal loads. Their reliability extends to aerospace, chemical, and marine sectors, offering enduring performance where other alloys falter. Victor Sheets and Plates’ 310H Angles embody structural integrity, innovation, and the unwavering strength demanded by advanced industrial engineering.
