Stainless Steel 316 Circle is a premium grade austenitic stainless steel product known for its outstanding corrosion resistance, especially in environments containing chlorides, salts, and acidic media. This grade is enriched with molybdenum, giving it superior resistance against pitting and crevice corrosion compared to standard 304 grades. SS 316 Circles offer excellent durability, strength, and heat resistance, making them suitable for both industrial and decorative applications. They are widely used in marine equipment, chemical processing units, food production machinery, pharmaceutical systems, and architectural design elements. The smooth finish and high formability of SS 316 Circles make them ideal for deep drawing, fabrication, and machining operations.
Stainless Steel 316 contains a balanced composition of chromium and nickel with the addition of molybdenum, which significantly enhances its corrosion resistance, especially in chloride-rich or marine environments. The alloy maintains a stable austenitic structure that offers excellent ductility and toughness across a wide temperature range. It exhibits strong mechanical strength, good tensile properties, and reliable hardness, ensuring performance even under heavy load and high-temperature conditions. SS 316 also provides excellent weldability and formability without the risk of grain boundary carbide precipitation. Its resistance to oxidation and chemical attack makes it a preferred choice for demanding applications.
| Standard | ASME, ASTM, EN, BS, GB, DIN, JIS, etc |
| Size | 3/4″ THRU 8″ |
| Thickness | 1/8″ thru 5/8″ |
| Type | Stuctural Steel Angle, Bars, Equal, Unequal, L, T, Hot Rolled |
| Grades | 304/304L/304H/310S/316/316L/316H/316TI/317/317L/321/321H/904L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316Ti | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 316 Circles are extensively used in industries requiring high resistance to corrosion and chemical stability. They are widely utilized in marine engineering, shipbuilding, and offshore platforms due to their ability to withstand saltwater conditions. In the chemical and petrochemical industries, SS 316 Circles are used in tanks, reactors, heat exchangers, and pipe fittings. The food and beverage sector uses them in processing equipment because the material ensures hygiene and resists contamination. Pharmaceutical and medical equipment manufacturers prefer SS 316 due to its non-reactive and sterilization-friendly properties. Other applications include kitchenware, architectural components, industrial flanges, and precision-machined parts.
| THICKNESS | ||||||
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |

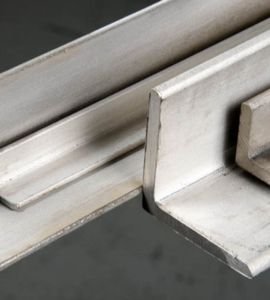

Stainless steel 316 angle is widely used in applications requiring high corrosion resistance and durability. Because of its resistance to chloride-induced corrosion, it is commonly found in marine environments, chemical plants, and food processing plants. It is also used in the construction of pressure vessels, heat exchangers and architectural structures. Its excellent form ability and strength make it ideal for structural supports, framing and reinforcement in buildings, bridges and machinery. In addition, stainless steel 316 angle is used in the construction of pipelines, tanks and reactors.
