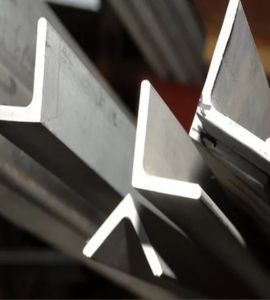

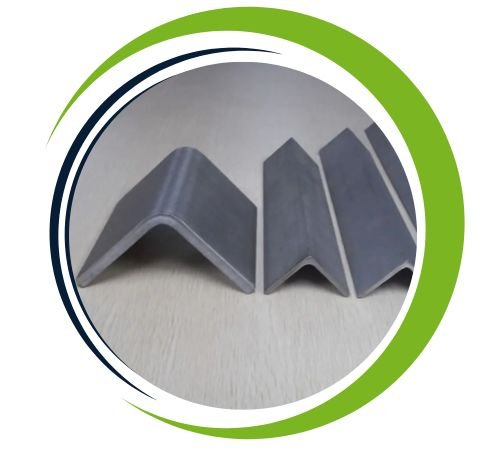

Victor Sheets and Plates, a trusted manufacturer and supplier in Abuja, Nigeria, delivers Stainless Steel 317 Angles—a superior austenitic alloy designed for exceptional corrosion resistance and mechanical endurance. Enriched with high molybdenum content, SS 317 offers outstanding protection against pitting, crevice corrosion, and acidic attack, outperforming conventional chromium-nickel grades. These angles are engineered to withstand aggressive chemical environments, making them indispensable in industries where strength meets chemical resilience. Precision-formed and metallurgically refined, Victor’s SS 317 Angles set the standard for durability, formability, and performance in demanding structural and industrial applications.
Stainless Steel 317 consists of 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, providing superior resistance to chemical corrosion and oxidation. It offers excellent tensile and yield strength, high creep resistance, and outstanding toughness even at elevated temperatures. The molybdenum enrichment enhances resistance to chloride-induced corrosion, ensuring long-term reliability in harsh environments. SS 317 Angles exhibit exceptional weldability, machinability, and dimensional stability. Their refined microstructure and austenitic strength make them ideal for heavy-duty applications requiring consistent performance under chemical, thermal, and mechanical stress.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 317 Angle | : | 5mm to 9mm |
| SS 317 Channel | : | 40mm*20mm~300mm*300mm |
| SS 317 Beam | : | 3″ thru 12.31″ |
| SS 317 Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 317 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.845 min |
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 – 20.00 | 3.00 – 4.00 | 11.00 – 15.00 | 57.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.9 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | EN |
| SS 317 | 1.4449 | S31700 | SUS 317 | – |
| SS 317L | 1.4438 | S31703 | SUS 317L | X2CrNiMo18-15-4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 317 angle provides excellent corrosion resistance, especially in chloride and acidic environments, making it ideal for extreme conditions and extremely durable, retaining its strength and its integrity at elevated temperatures. The alloy is resistant to pitting and crevice corrosion, increasing its longevity in harsh applications. Stainless steel 317 is easily manufactured and welded, providing versatility for a variety of architectural and industrial applications. Its excellent performance in pharmaceutical, food processing and marine environments makes it reliable for applications requiring high resistance loss.
Stainless Steel 317 Angles are widely used in the chemical, petrochemical, paper, and marine industries where corrosion resistance and structural integrity are paramount. They are ideal for use in evaporators, heat exchangers, pulp digesters, and reactor vessels exposed to aggressive acids and chlorides. In marine engineering, they perform reliably against saltwater corrosion and high humidity. SS 317 Angles also serve effectively in architectural frameworks and fabrication systems requiring superior strength and resilience. Victor Sheets and Plates’ SS 317 Angles exemplify industrial reliability—crafted for environments where mechanical endurance and chemical stability define performance.
