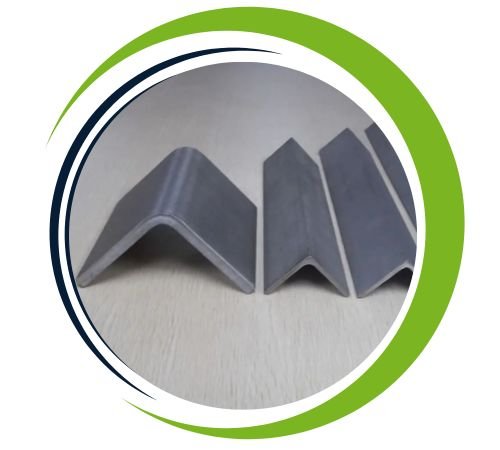

Victor Sheets and Plates, a well-respected manufacturer and supplier based in Abuja, Nigeria, is recognized for delivering top-notch Stainless Steel 348 Angles. These angles are designed to withstand heat, corrosion, and intergranular attack, making them perfect for high-temperature applications that demand exceptional mechanical strength and stability. Crafted with cutting-edge technology and high-quality raw materials, Stainless Steel 348 Angles guarantee impressive weldability and durability. Serving industries like petrochemical, power generation, construction, and aerospace, Victor Sheets and Plates provides reliable stainless steel solutions that adhere to international standards for performance, precision, and longevity.
Stainless Steel 348 Angles are made up of iron, chromium (17–19%), nickel (9–13%), along with small amounts of niobium and tantalum to enhance stabilization. This austenitic stainless steel grade is known for its remarkable resistance to intergranular corrosion post-welding and excellent oxidation resistance up to 900°C. It boasts a tensile strength of about 550 MPa, along with good yield strength and impressive creep resistance. Stainless Steel 348 also offers great formability, weldability, and mechanical stability at high temperatures, making it an ideal choice for structural and thermal process applications.
Standard – ASTM A240 / ASME SA240, JIS4304-2005, ASTM A167, EN10088-2-2005, GB/T3280-2007, etc
Thickness – 0.3mm – 100mm
Width – 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm etc
Length – 2000mm, 2440mm, 3000mm, 5800mm, 6000mm etc
Surface – 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc
Material – Soft, Deep Draw, Extra Deep Draw, Quarter Hard, Half Hard, Full Hard.
Finish – Hot rolled plate (HR), Cold rolled sheet (CR), NO.1, 2B, 2D, 2H, 2R, No.4, HAIRLINE, SCOTCH BRITE, SATIN FINISH, NO.8, BA
Form – Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange), etc.
| Grade | Mn | P | C | S | Cr | Si | Ni | Fe | Co |
| SS 348 | 2.0 | 0.045 | 0.080 | 0.030 | 19 | 1.0 | 11 | 66 | 0.2 |
| SS 348H | 2.00 | 0.045 | 0.04-0.10 | 0.030 | 17.00-19.00 | 0.75 | 9.00-13.00 | – | – |
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Rockwell B (HR B) max | Brinell (HB) max |
| 348 | 515 | 205 | 40 | 92/95 | 201/217 |
| 348H | 968 (≥) | 423 (≥) | 32 | 34 | 212 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 348 | 1.4550 | S34800 |
| SS 348H | 1.4961 | S34809 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 348 angle offers several advantages, including excellent corrosion resistance, especially in high-temperature environments, making it ideal for applications in the chemical, aerospace and petrochemical industries Demonstrates weldability and excellent formability ate, making it easy to manufacture. Intergranular corrosion resistance of the alloy ensures its durability in high temperature applications. Stainless steel 348 also retains its strength at elevated temperatures, making it suitable for use in electric motors and boilers. It is resistant to scaling and oxidation, providing long-term performance under harsh conditions. These qualities ensure reliability and durability.
Stainless Steel 348 Angles find their place in high-temperature and corrosive settings, such as heat exchangers, furnace components, and boiler parts. They are widely used in the chemical, aerospace, and power generation sectors for constructing reactor vessels, exhaust systems, and turbine equipment. Their strong resistance to intergranular corrosion makes them perfect for welded structures and high-stress environments. In construction, they serve as frameworks and supports that require enduring strength. Plus, Stainless Steel 348 Angles are also great for food processing applications, ensuring safety and reliability.
