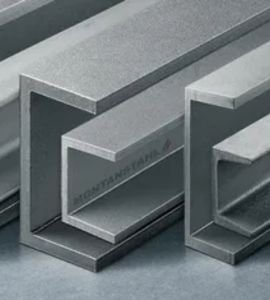

Stainless Steel 904L Channels from Victor Sheets and Plates, Abuja, Nigeria, embody the perfect fusion of corrosion resistance, strength, and longevity in demanding industrial conditions. Crafted from a high-alloy austenitic stainless steel, SS 904L channels are specifically engineered to withstand severe chemical environments, including sulfuric, phosphoric, and acetic acids. With their low carbon content and superior metallurgical stability, these channels resist pitting, crevice corrosion, and stress corrosion cracking even under extreme exposure. Designed for heavy-duty structural and process applications, they deliver enduring performance where standard stainless steels fail to endure.
Stainless Steel 904L channels comprise a unique blend of nickel (23–28%), chromium (19–23%), molybdenum (4–5%), and copper, offering extraordinary resistance to reducing and oxidizing acids. The low carbon composition prevents carbide precipitation, maintaining superior weldability and corrosion immunity. Mechanically, 904L delivers high tensile strength, excellent toughness, and exceptional stress-rupture resistance, even at elevated temperatures. Its non-magnetic, austenitic structure ensures stability under dynamic loads and vibration. With excellent formability and fatigue endurance, these channels sustain mechanical integrity and dimensional precision across extreme operational conditions.
| Specifications | : | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 904L Angle | : | 5mm to 9mm |
| SS 904L Channel | : | 40mm*20mm~300mm*300mm |
| SS 904L Beam | : | 3″ thru 12.31″ |
| SS 904L Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel 904L Channel offers exceptional resistance to corrosion, particularly in harsh environments such as those with high concentrations of acids, chlorides, and sulfides. Its high nickel and molybdenum content provide superior resistance to pitting, crevice corrosion, and stress corrosion cracking. The alloy’s excellent weldability and formability make it ideal for complex structures. With high strength and durability, it is suitable for demanding applications in the chemical, petrochemical, and marine industries. Stainless Steel 904L Channels also maintain their integrity in high-temperature environments, ensuring long-term performance and reduced maintenance costs.
Yes, we offer custom sizes for Stainless Steel 904L Channel to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
SS 904L Channels are the preferred choice in industries where extreme corrosion and mechanical stress coexist. They are extensively utilized in chemical processing plants, marine structures, desalination systems, offshore oil rigs, paper and pulp industries, and pharmaceutical equipment frameworks. Their superior acid resistance makes them ideal for handling sulfuric and phosphoric acids in fertilizer plants and refineries. In structural fabrication and support systems, they offer unparalleled stability, longevity, and reliability. For engineers demanding elite performance under aggressive environments, 904L Channels from Victor Sheets and Plates deliver unmatched strength and metallurgical excellence.
Our team is ready to assist you. Contact us for any queries or personalized solutions.
