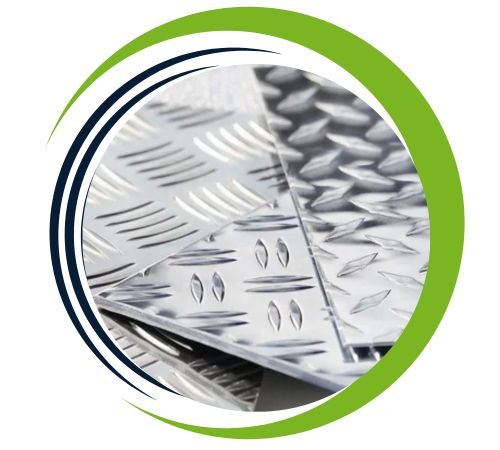

Victor Sheets and Plates, a well-respected manufacturer and supplier located in Abuja, Nigeria, specializes in high-quality Stainless Steel Chequered Sheets and Plates. These products are celebrated for their durability, strength, and slip-resistant surface design. With a unique raised pattern that boosts traction, they’re perfect for flooring, ramps, stair treads, and industrial platforms. Crafted from premium stainless steel using cutting-edge technology, these sheets and plates offer exceptional corrosion resistance, visual appeal, and easy upkeep. Victor guarantees that each Chequered Sheet and Plate adheres to international standards, ensuring long-lasting performance, structural integrity, and safety for both industrial and architectural uses.
Stainless Steel Chequered Sheets and Plates are typically made in grades such as 304, 304L, 316, and 316L, which contain 18–20% chromium, 8–12% nickel, and trace amounts of molybdenum (in the 316 grade) for enhanced corrosion resistance. They boast a tensile strength ranging from 520–700 MPa, yield strength of about 210–250 MPa, and elongation of up to 40%. These sheets are known for their excellent formability, weldability, and oxidation resistance, maintaining their finish even in tough conditions. The raised pattern not only provides anti-slip features but also enhances rigidity and strength for demanding industrial applications.
Specifications : ASTM A182 / ASME SA182
Standard : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Size : 1000mm x 2000mm, 1000mm x 2500mm, 1220mm x 2440mm, 1250mm x 2500mm, 1500mm x 3000mm
Thickness : 3mm – 5mm.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Grade : 304, 304L, 304H, 316, 316L, 317, 317L, 321, 310, 347, 904L Wire Mesh / Wire Netting ETC.
| Grade | C | Mn | P | S | Si | Cr | N | Ni | Fe |
| SS Chequered 304 Plates | 0.07max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | – | min: 8.0 max: 10.5 | – |
| SS Chequered 304L Sheets | 0.03max | 2.0max | 0.045max | 0.03max | 0.75max | min: 18.0 max: 20.0 | 0.10 max | min: 8.0 max: 12.0 | – |
| SS Chequered 304H Plate | min: 18.0 max:20.0 | min: 8.0 max: 10.5 | 0.75 max | 2.0 max | min: 0.04 max:0.10 | 0.045 max | 0.10 max | 0.03 max | – |
| SS Checkered 316 Sheets | Min | – | – | 0 | – | – | 10.0 | 16.0 | – |
|---|---|---|---|---|---|---|---|---|---|
| Max | 0.08 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Checker 316L Plates | Min | – | – | – | – | – | 10.0 | 16.0 | – |
| Max | 0.03 | 0.75 | 0.045 | 2.0 | 0.03 | 14.0 | 18.0 | 0.10 | |
| SS Chequered 316H Sheet | Min | 0.04 | 0 | – | 0.04 | – | 10.0 | 16.0 | – |
| max | 0.10 | 0.75 | 0.045 | 0.10 | 0.03 | 14.0 | 18.0 | – |
| Grade | Density | Yield Strength (0.2%Offset) | Tensile Strength | Melting Point | Elongation |
| Stainless Steel 304 / 304L Checkered Plate | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 304H Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 40 % |
| Stainless Steel 310 Checker Plate | 7.9 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1402 °C (2555 °F) | 40 % |
| Stainless Steel 316 Checkered Sheet | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 316L Checker Plate | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1399 °C (2550 °F) | 35 % |
| Stainless Steel 317 Checker Sheets | 7.9 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1400 °C (2550 °F) | 35 % |
| Stainless Steel 321 Checkered Plates | 8.0 g/cm3 | Psi 30000, MPa 205 | Psi 75000, MPa 515 | 1457 °C (2650 °F) | 35 % |
| Stainless Steel 347 Checker Sheets | 8.0 g/cm3 | Psi 30000 , MPa 205 | Psi 75000 , MPa 515 | 1454 °C (2650 °F) | 35 % |
| Stainless Steel 904L Checker Plate | 7.95 g/cm3 | Psi 32000, MPa 220 | Psi 71000, MPa 490 | 1350 °C (2460 °F) | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 304 | 1.4301 | S30400 |
| SS 304L | 1.4306 / 1.4307 | S30403 |
| SS 304H | 1.4301 | S30409 |
| SS 310 | 1.4841 | S31000 |
| SS 310S | 1.4845 | S31008 |
| SS 310H | – | S31009 |
| SS 316 | 1.4401 / 1.4436 | S31600 |
| SS 316L | 1.4404 / 1.4435 | S31603 |
| SS 316H | 1.4401 | S31609 |
| SS 316Ti | 1.4571 | S31635 |
| SS 317 | 1.4449 | S31700 |
| SS 317L | 1.4438 | S31703 |
| SS 321 | 1.4541 | S32100 |
| SS 321H | 1.4878 | S32109 |
| SS 347 | 1.4550 | S34700 |
| SS 347H | 1.4961 | S34709 |
| SS 904L | 1.4539 | N08904 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless Steel Chequered Sheets and Plates offer several advantages, including enhanced slip resistance, which is ideal for floors, stairs, and walkways. Their durability and corrosion resistance ensures long-lasting performance in harsh environments. The unique pattern provides aesthetic appeal and functionality, improving traction in wet or oily conditions. They are lightweight yet strong, ensuring easy handling and installation. They are also low-maintenance, easy to clean, and versatile, and they are widely used in industries like construction, automotive, and marine for decorative and functional purposes.
| Thickness | Plate Weight per Unit Area | Density |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Stainless Steel Chequered Sheets and Plates are incredibly popular for a variety of uses, including industrial flooring, walkways, truck and bus flooring, staircases, and loading docks, thanks to their anti-skid and durable surfaces. They also find their way into architectural interiors, elevators, and decorative projects because of their appealing finish and resistance to corrosion. In settings like chemical plants, food processing units, and marine environments, they offer a hygienic and wear-resistant surface. These sheets are perfect for platforms, ramps, and safety surfaces where both durability and aesthetics matter. Victor’s Chequered Sheets and Plates combine strength, style, and safety, making them a great choice for a wide range of commercial and industrial applications.
