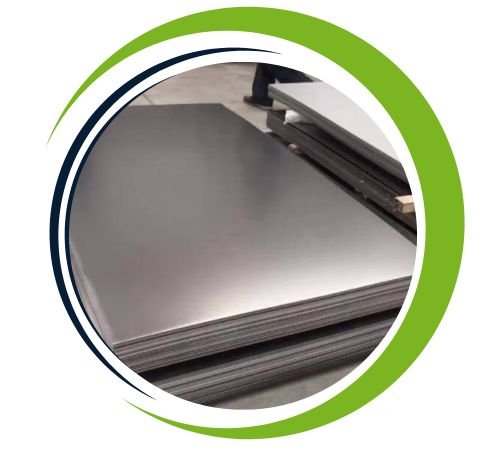

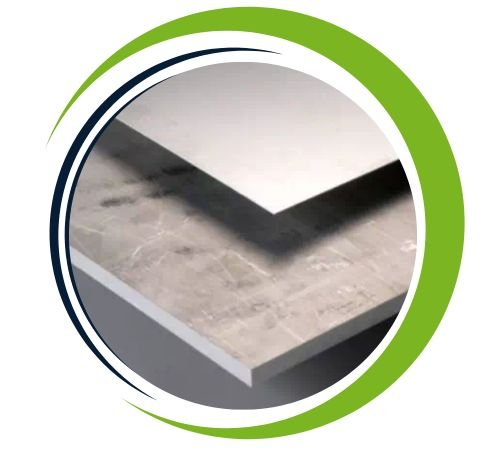

Victor Sheets and Plates is a trusted manufacturer and supplier of Titanium Grade 5 Sheets and Plates in Abuja, Nigeria, serving industries that require high-performance materials with superior strength and corrosion resistance. Commonly known as Ti-6Al-4V, Grade 5 is the most widely used titanium alloy due to its excellent balance of durability, lightweight efficiency, and structural stability. Our Titanium Grade 5 Sheets and Plates are precision-rolled to ensure uniform thickness, excellent surface quality, and reliable mechanical integrity. They are widely used in aerospace, chemical processing, marine engineering, medical equipment, and high-performance industrial applications where long-lasting reliability is crucial.
Titanium Grade 5 Sheets and Plates are composed of 90% Titanium, 6% Aluminum, and 4% Vanadium, forming a dual-phase alpha-beta alloy known for its superior strength-to-weight ratio. This alloy offers high tensile and yield strength, excellent fatigue resistance, and strong corrosion resistance in both oxidizing and chloride environments. It performs reliably under elevated temperatures while maintaining structural stability. Despite its strength, it remains relatively lightweight, contributing to improved efficiency in design applications. The alloy is weldable and machinable with appropriate techniques, making it versatile across advanced engineering and high-performance fabrication environments.
Titanium Sheets and Plates Specification : ASTM B265 / ASME SB265
Dimension Standard : JIS, AISI, ASTM, GB, DIN, EN, etc
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

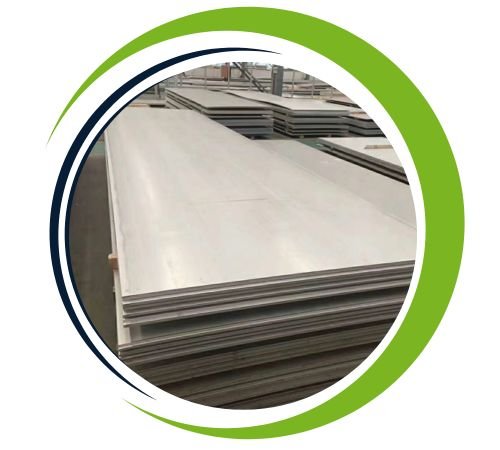

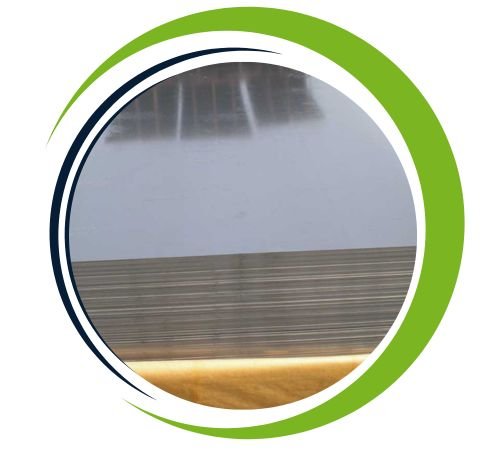

Surface Finishing : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.
| Grade | Ti | C | Fe | O | Al | V |
| Titanium Gr 5 | 90 min | – | 0.25 max | 0.2 max | 6 min | 4 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Grade 5 | 3.7165 | N56400 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium Grade 5 Sheets and Plates are used extensively in the aerospace sector, including aircraft frames, engine components, and turbine systems, due to their strength and temperature resistance. In medical applications, they are used for implants, prosthetics, surgical instruments, and dental devices because of their biocompatibility. In the marine and offshore industries, these sheets and plates provide long-term performance in seawater environments. They are also utilized in chemical processing equipment, desalination systems, high-performance automotive parts, power generation equipment, and precision-fabricated components. Their combination of reliability, durability, and lightweight performance makes them essential in demanding engineering environments.
| Stocked Sizes | |
|---|---|
| Size (in inches) | Size (in ) |
| .125 | 3.18 |
| .134 | 3.40 |
| .156 | 3.96 |
| .187 | 4.75 |
| .250 | 6.35 |
| .312 | 7.92 |
| .375 | 9.53 |
| .500 | 12.7 |
| .600 | 15.9 |
| .750 | 19.1 |
| .875 | 22.2 |
| 1 | 25.4 |
| 1.125 | 28.6 |
| 1.250 | 31.8 |
| 1.500 | 38.1 |
| 1.750 | 44.5 |
| 2 | 50.8 |
| 2.500 | 63.5 |
| 3 | 76.2 |
Titanium Grade 5 (Ti-6Al-4V) sheets and plates are widely used in industries that require a high strength-to-weight ratio and corrosion resistance. Common applications include aerospace, where they are used for aircraft components, engine parts, and structural elements. Due to their biocompatibility, they are also used in the medical field for implants and prosthetics. Additionally, Titanium Gr 5 sheets and plates are used in marine, chemical processing, and power generation industries thanks to their excellent resistance to oxidation and fatigue at elevated temperatures.
