Titanium Grade 2 Coil/Slitting Coil

Victor Sheets and Plates is a well-respected manufacturer and supplier of Titanium Grade 2 Coils, proudly based in Abuja, Nigeria. The company is dedicated to providing top-notch titanium products that adhere to international standards for strength, durability, and resistance to corrosion. Known as commercially pure titanium, Titanium Grade 2 is highly regarded for its remarkable ductility, weldability, and formability. At Victor Sheets and Plates, precision manufacturing and consistent quality are top priorities, making their Titanium Grade 2 Coils perfect for industries like chemical processing, marine, aerospace, and medical, where lightweight materials with outstanding corrosion resistance are a must.

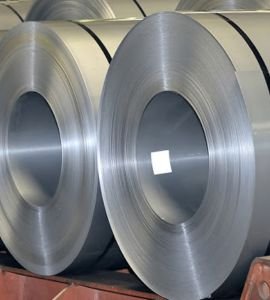

Ti Hot Grade 2 Rolled Coil

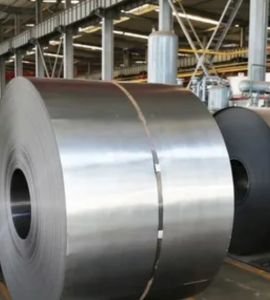

ASTM B265 Titanium Grade 2 Alloy Coils

Titanium Alloy GR 2 CR Coil

Titanium Grade 2 Coils Price List in Lagos , Ti Alloy Gr 2 Slitting Coil Weight Chart, Titanium Grade 2 Alloy Cold Rolled Coil Supplier in Nigeria, Wide Range of Titanium Grade 2 Coils in Ibadan, Titanium Gr 2 2D Finish Coil Supplier in Kano, Titanium Grade 2 HR Coil Price List in Abuja, Titanium UNS R50400 Alloy Coils Supplier in Ibadan, Titanium Grade 2 Hot Rolled Coil Exporter in Port Harcourt , ASTM B265 Titanium Grade 2 Coil Exporter in Nigeria, Titanium Grade 2 Slitting Coils Exporter in Kano, Titanium Grade 2 Shim Coils in Nigeria

Titanium Grade 2 Coils are primarily made up of titanium (about 99.2%), along with trace amounts of iron (≤0.30%), oxygen (≤0.25%), carbon (≤0.08%), and nitrogen (≤0.03%). This unique composition provides the alloy with excellent corrosion resistance and moderate strength. The material boasts a tensile strength ranging from 350 to 485 MPa and a yield strength of around 275 MPa, all while maintaining good elongation and toughness. With a density of 4.51 g/cm³ and a melting point close to 1665°C, Titanium Grade 2 performs exceptionally well in oxidizing and mildly reducing environments, making it a go-to choice for applications that require high reliability and longevity.

Titanium Grade 2 Coil/Slitting Coil

Standards	ASTM B265 / ASME SB265
Thickness	0.2mm – 5.0mm
Width	3.2mm – 1500mm & bove
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, AS PER CUSTOMER’S REQUIREMENT
Hardness	Annealed – pickled (soft), Soft, Hard, Half Hard, Quarter Hard, Spring Hard , 1/4 hard, Yi hard,3/4 hard , full hard , extra hard
Test Certificate	Chemical test, Fitting test, Alloy test, Radiography test, Macro and micro-test, Hydrostatic test, Impact test.
Finish	Cold rolled stainless steel strips annealed & pickled 2 B Cold rolled stainless steel strips annealed & skin passed 2R Work harden for specific hardness BA/BE/ Matt Finish Cold rolled stainless steel strips

Chemical Composition of Titanium Gr.2 Coil/Slitting Coil

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade 2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	–	–

Mechanical Properties of Titanium Gr 2 Coil/Slitting Coil

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Ti Gr.2	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %

Equivalent Grades of Titanium Grade 2 Coil/Slitting Coils

STANDARD	WERKSTOFF NR.	UNS
Titanium Gr.2	3.7035	R50400

UNS R50400 Titanium Coils Dealer in Lagos, Titanium Grade 2 Alloy Supplier in Lagos,Titanium Grade 2 Coils in Port Harcourt, ASME SB265 Titanium Grade 2 Coils Size Chart, Titanium Grade 2 2B Finish Coil Price in Kano, Titanium Grade 2 Cold Rolled Coils Supplier in Nigeria, Titanium 3.7035 Shim Coils Stockist in Ibadan, Polished Titanium Grade 2 Coil Exporter in Nigeria, Titanium Grade 2 Coil Cut To Size Coils Stockist in Abuja, Titanium Grade 2 Coils Supplier in Ibadan

If You Are Looking To Buy High Quality Piping Products ?

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

Largest Titanium Grade 2 Coil/Slitting Coil Manufacturer and Exporter in Abuja, Nigeria

Victor Sheets and Plates based in Abuja, Nigeria, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.

Sizes Of Titanium Alloy Grade 2 Coil/Slitting Coils

Thickness Tolerance +/- mm
Thickness	Width
Thickness	320≤W＜600	W＜320
	T1	T2	T3	T4
T＜0.05 mm	0.004	0.003	0.003	0.002
0.05≤T＜0.07	0.005	0.004	0.004	0.003
0.07≤T＜0.08	0.006	0.005	0.005	0.003
0.08≤T＜0.10	0.007	0.005	0.005	0.003
0.10≤T＜0.13	0.009	0.007	0.006	0.004
0.13≤T＜0.15	0.010	0.008	0.007	0.004
0.15≤T＜0.20	0.011	0.009	0.008	0.004
0.20≤T＜0.25	0.013	0.010	0.008	0.005
0.25≤T＜0.30	0.015	0.011	0.009	0.005
0.30≤T＜0.35	0.016	0.012	0.010	0.005
0.35≤T＜0.40	0.018	0.012	0.010	0.005
0.40≤T＜0.50	0.020	0.015	0.012	0.005
0.50≤T＜0.60	0.022	0.018	0.013	0.005
0.60≤T＜0.70	0.024	0.020	0.015	0.005
0.70≤T＜0.80	0.026	0.022	0.017	0.005
0.80≤T＜0.90	0.028	0.024	0.018	0.006
0.90≤T＜1.00	0.032	0.027	0.020	0.008
1.00≤T＜1.20	0.035	0.030	0.022	0.008
1.20≤T＜1.40	0.040	0.035	0.025	0.010
1.40≤T＜1.60	0.045	0.040	0.030	0.020

Titanium Grade 2 Plain Coil Manufacturer in Abuja, Titanium Gr 2 Alloy Coils Manufacturer in Port Harcourt, Cold Rolled Titanium Gr 2 Alloy Coil Supplier in Lagos, ASME SB265 Titanium Grade 2 Coils Exporter in Ibadan, Titanium Grade 2 Slitting Coil Manufacturer in Nigeria, Titanium Gr 2 Coils Distributor in Port Harcourt, Titanium DIN 3.7035 Cold Rolled Coils Supplier in Lagos, Titanium R50400 HR rolled Coils Distributor in Nigeria, Titanium Gr 2 2D Finish Slit Coils Sizes in mm

Titanium Grade 2 coil and slitting coils offer many advantages, including exceptional corrosion resistance, especially in oxidizing and lightly reducing environments, making them ideal for medical and marine applications They are lightweight yet durable, it provides excellent strength-to-weight ratio for efficient material handling. The coils are highly weldable, easy to manufacture, and retain their mechanical properties over a wide range of temperatures. In addition, titanium grade 2 is biocompatible, making it suitable for medical and food grade applications. These assets ensure sustainability, cost-effectiveness and versatility in a variety of industries, from aerospace to desalination plants.

Types of Titanium Grade 2 Coil/Slitting Coil

DIN 3.7035 Titanium Gr 2 Alloy Slitting Coil Distributor in Nigeria, Titanium Grade 2 Hot Rolled Coil Supplier in Abuja, Titanium Grade 2 Alloy HR Weight Chart, Titanium Grade 2 Cold Rolled Coils Exporter in Kano, Ti Alloy Gr 2 Cold Rolled Coil Manufacturer in Lagos, ASTM B265 Titanium Grade 2 Coils Price List in Nigeria, Titanium Grade 2 CR Coils Sizes in mm, Titanium Grade 2 2D Finish Coils Distributor in Port Harcourt, Titanium Grade 2 Slitting Coil in Ibadan

Are Custom Sizes Available for Titanium Grade 2 Coil/Slitting Coil?

Yes, we offer custom sizes for Titanium Grade 2 Coil/Slitting Coil to meet specific project needs. Our team at Victor Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.

Customer Support

Largest Inventory

On Time Delivery

Quality Assurance

Competitive Pricing

Application Industry of Titanium Grade 2 Coil/Slitting Coil

Titanium Grade 2 Coils are extensively utilized in various industries where corrosion resistance and lightweight properties are crucial. In the chemical sector, they are commonly found in heat exchangers, condensers, and reaction vessels. The marine industry employs them in shipbuilding, desalination plants, and offshore structures due to their impressive resistance to seawater corrosion. In aerospace, these coils are integral to structural panels and engine components. The medical field relies on them for surgical tools and implants because of their biocompatibility. Additionally, they are used in automotive, power generation, and electrochemical equipment that demand superior performance.
